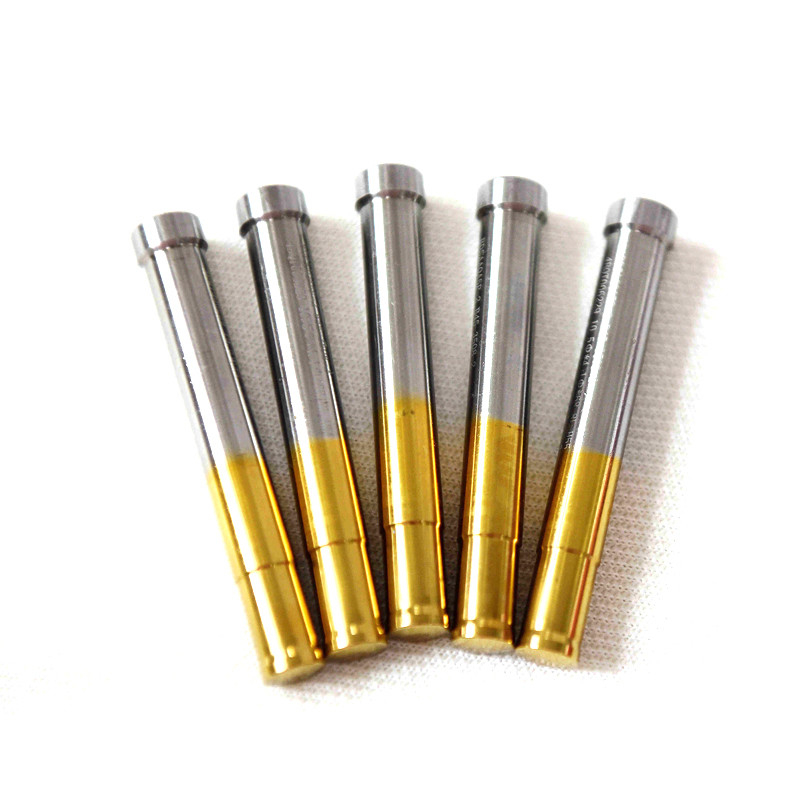

Name: Guide Pin Punch For Stamping Die SKD-11 Hardened Steel 60-62 HRC ±0.01mm Tolerance
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

घर > उत्पादों > टंगस्टन कार्बाइड डाई >

Guide Pin Punch For Stamping Die SKD-11 Hardened Steel 60-62 HRC ±0.01mm Tolerance

Hollow Blind Rivet Nuts

Expansion Rivet Nuts

Stainless Steel Rivet Nuts

Place of Origin:

CHINA

ब्रांड नाम:

Heng Hui

प्रमाणन:

ISO9001

Model Number:

Customized

हमसे संपर्क करें

एक उद्धरण का अनुरोध करें

Guide Pin Punch For Stamping Die SKD-11 Hardened Steel 60-62 HRC ±0.01mm Tolerance

उत्पाद विवरण

Product name:

Expansion Rivet Nuts

Size:

Customized

Head type:

FLat

MOQ:

5000pcs

Delivery time:

15~20 Days

Payment term:

T/T

भुगतान और शिपिंग की शर्तें

Minimum Order Quantity

10 PCS

मूल्य

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20 Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

संबंधित उत्पाद

Tungsten Carbide Molds: Precision Engineering For Industrial Applications High-Performance Tooling Solutions With Superior Wear Resistance

सबसे अच्छी कीमत प्राप्त करें

Wear-Resistant Tungsten Steel Tooling For Metalworking Plastic Molding

सबसे अच्छी कीमत प्राप्त करें

Heavy-Duty Punch Rod For Metal Stamping Industrial Forging Striker Shaft Alloy Steel Heat-Treated

सबसे अच्छी कीमत प्राप्त करें

High-Precision Master Die Precision Tooling For Production For Demanding Manufacturing Applications

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

+8613983025528

sales1@citool.com

86-023-60338218-60338218

अब संपर्क करें

उत्पाद वर्णन

Products Description

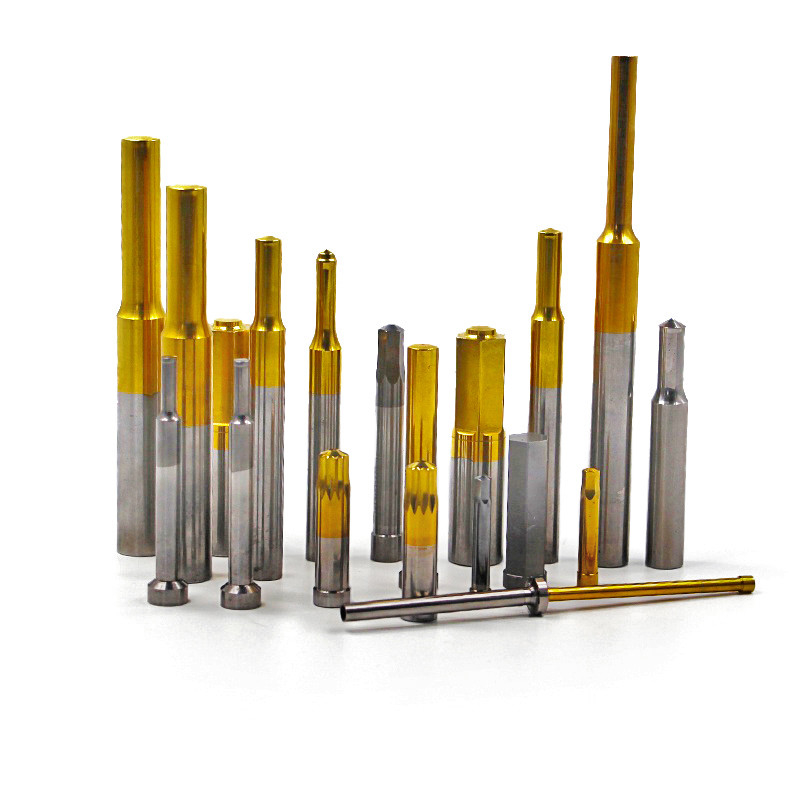

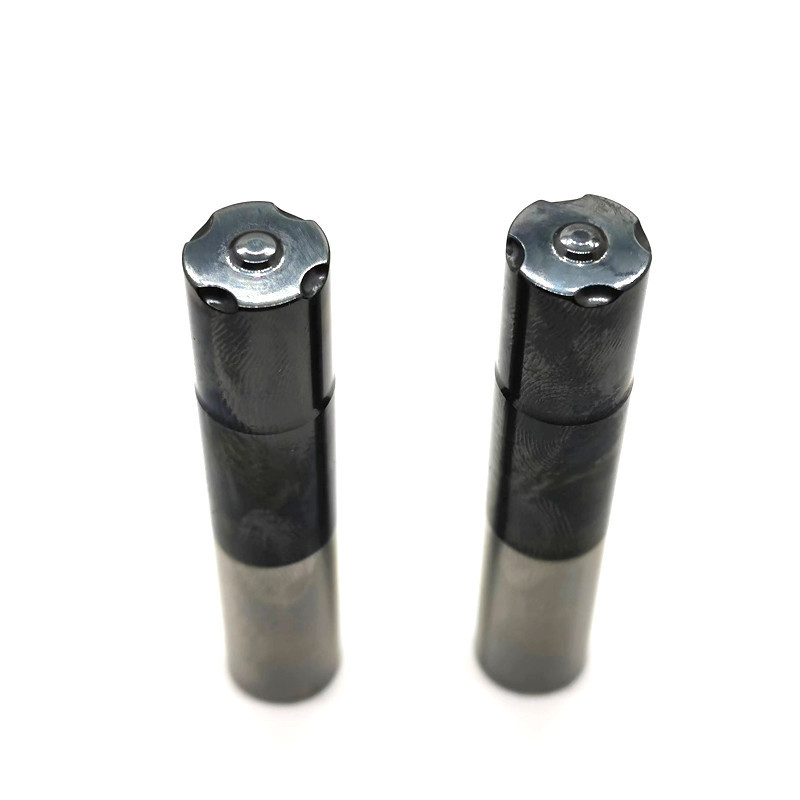

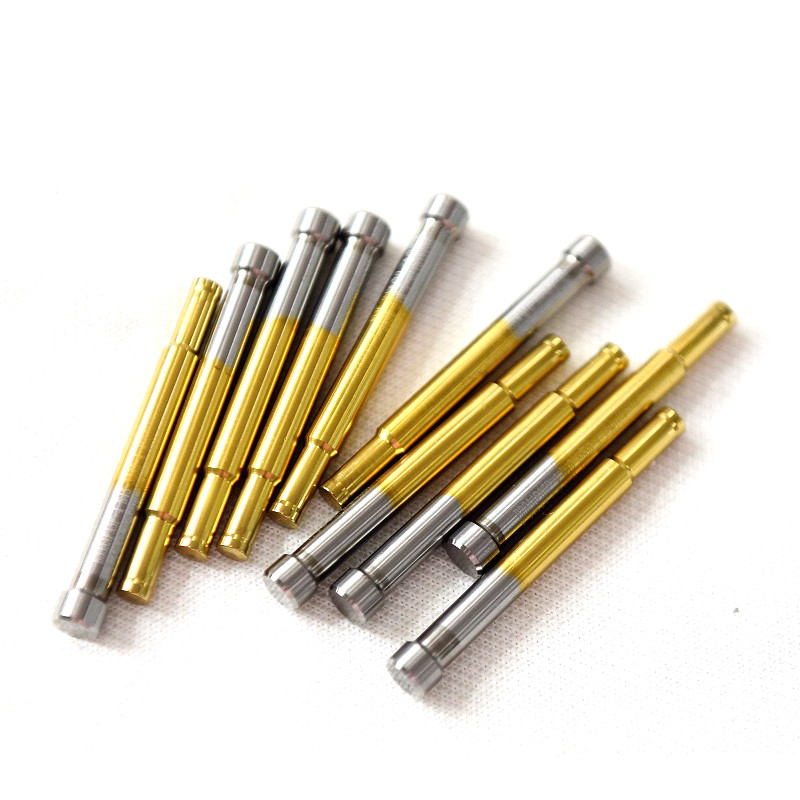

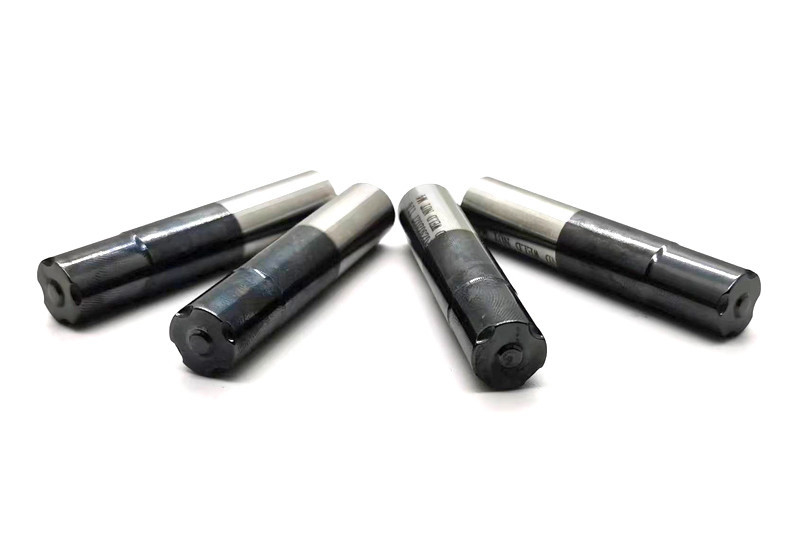

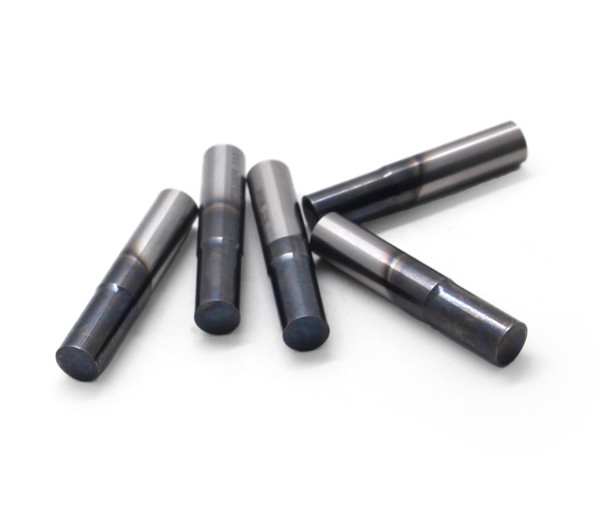

HSS Punch

The material selection of the punch pin is mainly high-speed steel.

The commonly used materials are SKH9, SKH55, SKH59 in Japan, M2, M35 and M42 in the United States.

The main feature of the material is that the high-speed punching material can maintain good red hardness

and wear resistance. There are also some powder high speed steel materials, commonly used are ASP23, ASP30, ASP60.
The performance of the material is superior to that of high-speed steel, but the price is high and t

he range of use is relatively small. Tungsten carbide punch pins are new products that can be produced by a few

companies this year. They are mainly made of tungsten carbide. They have high toughness requirements for materials,

and the technical requirements and production costs during production are also high.

They are commonly used in the stainless steel cold heading industry.

Material:Carbide＞M42(H59)＞M35(H55)＞M2(H9)

H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Surface Treatment:TILAN

Product Name:	HSS Pin Punch
Material:	M2/M42/M35/Carbide
Profile tolerance:	+/-0.006MM~ +/-0.008MM.
surface treatment:	Polishing,coating Treatment,Nitriding treatment,measuring,ETC..
Hardness	HRA60-68
Measuring instruments:	VMS,profile projector,pressure gauge,hardness tester,magnifying glass.etc...
Usage	For making bolts or nuts
Design:	Standard or un-standard parts,according to customer's requirement.
Processing machinery:	Wire EDM, CNC milling and turning, laser cutting, drilling, grinding, bending, stamping, welding, etc.
Drawing software:	AUTOCAD,pro-engineer,UG,moldflow,etc..
Application:	machinery equipment,Heavy industries parts&tools,medicine,chemical,etc...
Quality control:	100% inspection before shipping.
Customization:	OEM ODM service
