Name: Cold Heading Dies Precision Durability for High-Volume Metal Forming Good Quality China Supply
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

घर > उत्पादों > कोल्ड हेडिंग डाई >

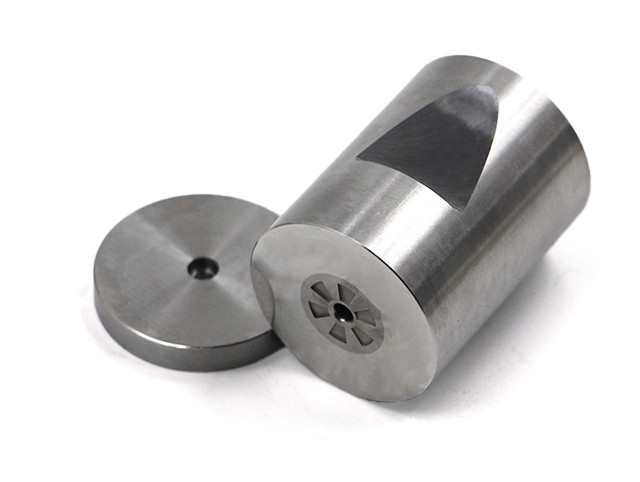

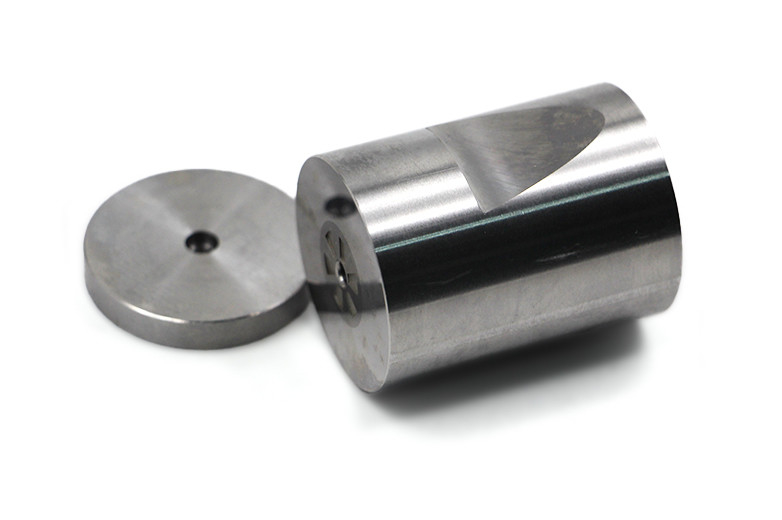

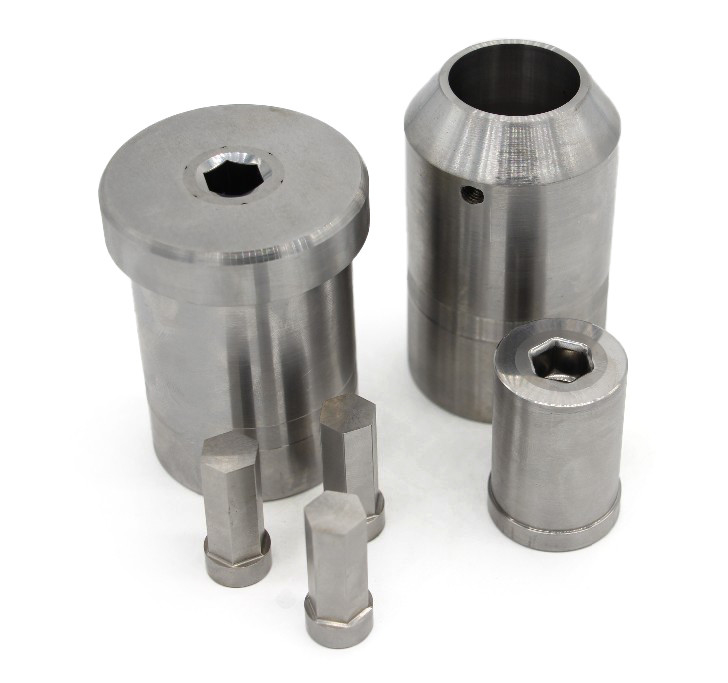

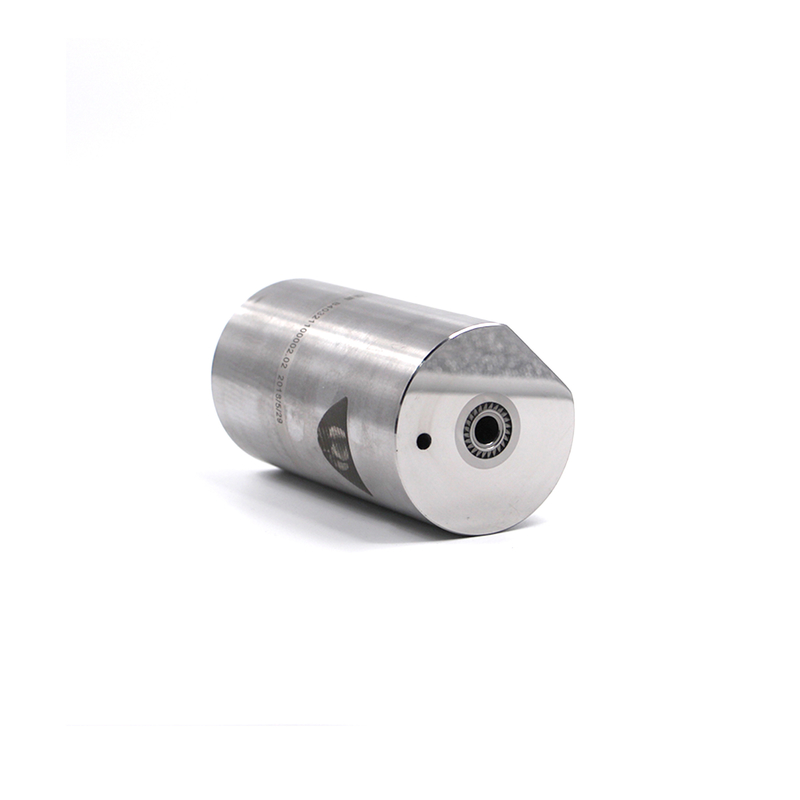

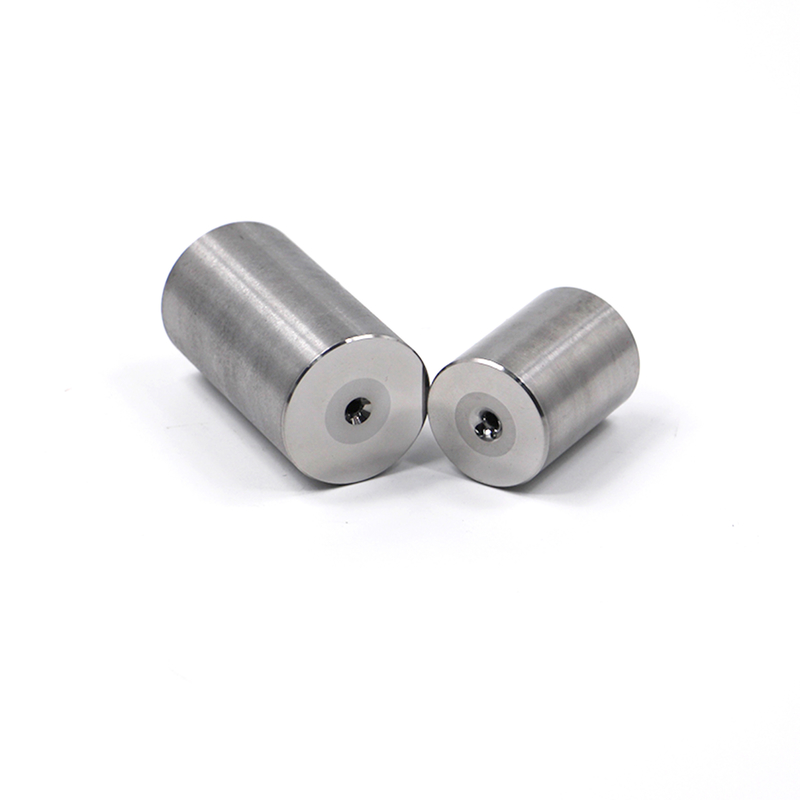

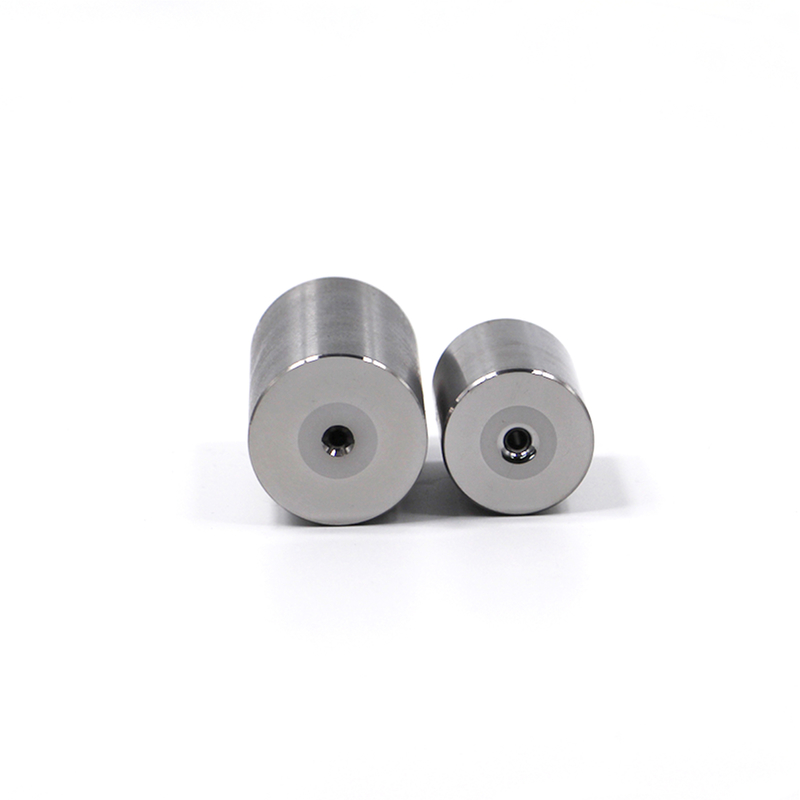

Cold Heading Dies Precision Durability for High-Volume Metal Forming Good Quality China Supply

Customized Micro Screws

High Quality Micro Screws

Metal Sheets Micro Screws

Place of Origin:

CHINA

ब्रांड नाम:

Heng Hui

प्रमाणन:

ISO9001

Model Number:

Customized

हमसे संपर्क करें

एक उद्धरण का अनुरोध करें

Cold Heading Dies Precision Durability for High-Volume Metal Forming Good Quality China Supply

उत्पाद विवरण

Product name:

Cold Heading Die

Mold Standard:

DME Standard. Master Flow Standard

Advantage:

High Strength

Type:

Hardware Fasteners

Mould Life:

250000-300000shots

Application:

Household Product Mold

भुगतान और शिपिंग की शर्तें

Minimum Order Quantity

1PCS

मूल्य

USD+2-1PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T

Supply Ability

1000PCS+Month

संबंधित उत्पाद

High-Speed Steel (HSS) Cold Heading Die - High Strength Impact Resistant Long Lifespan for Automotive Parts Manufacturing

सबसे अच्छी कीमत प्राप्त करें

High-Restraint Die Cold Heading Die China Supplier Customized Good Quality

सबसे अच्छी कीमत प्राप्त करें

Customized Good Quality Drawing Die Cold Heading Die Tungsten Carbide

सबसे अच्छी कीमत प्राप्त करें

China Factory Customized Good Quality Drawing Die Cold Heading Die Tungsten Carbide

सबसे अच्छी कीमत प्राप्त करें

हमसे संपर्क करें

+8613983025528

sales1@citool.com

86-023-60338218-60338218

अब संपर्क करें

उत्पाद वर्णन

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States "Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Inspection Equipment

Packing and Delivering
